Mavel DC100

    The Mavel DC100 is the power inverter developed to drive Mavel high speed motors.

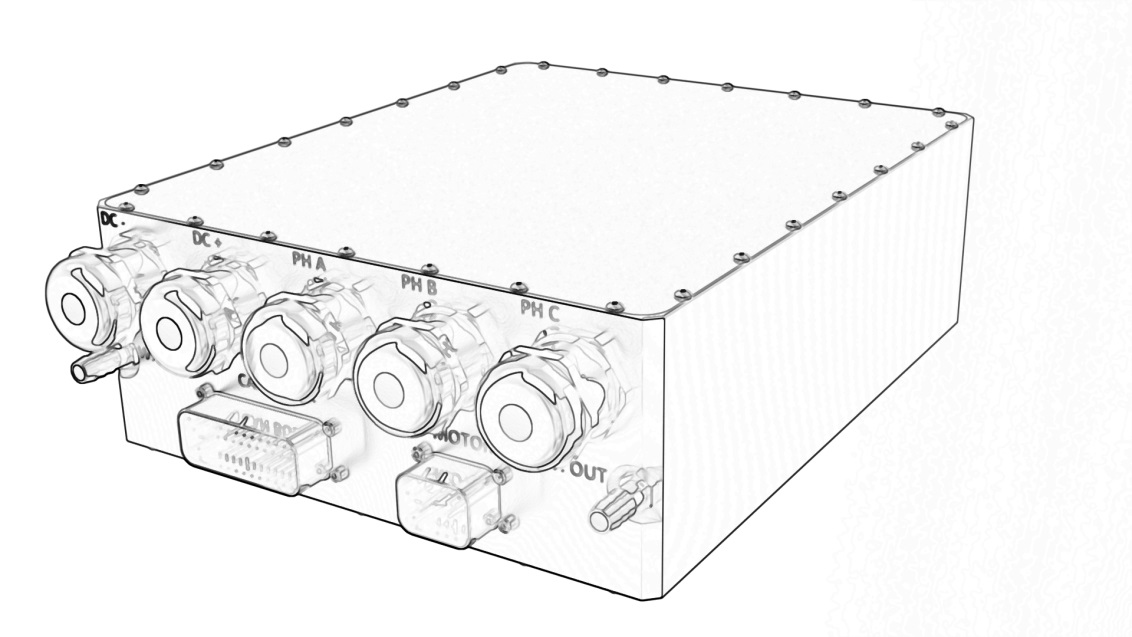

    DC100_2

    The DC100 is based on Mavel proprietary IGBT modules and soft switching techniques.

    The sensorless position and rotor temperature estimation algorithms make this inverter ideal for very high speed system.

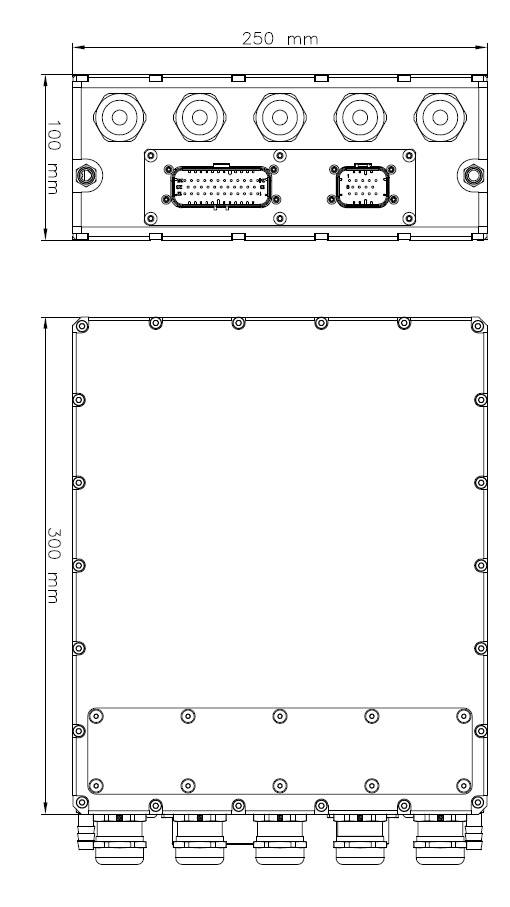

    instagram web version left;”>DC100_1





    Weight: 8 kg

    Maximum Output Current: 400 A

    Switching Frequency: 50 kHz

    Downloadable datasheet: Mavel DC100 source datasheet
